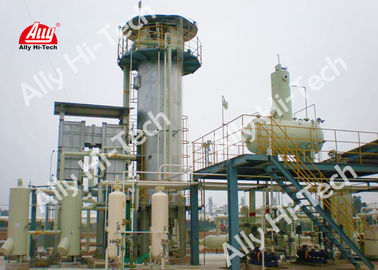

On Site Hydrogen Generation Hydrogen Purification System Easy Maintain

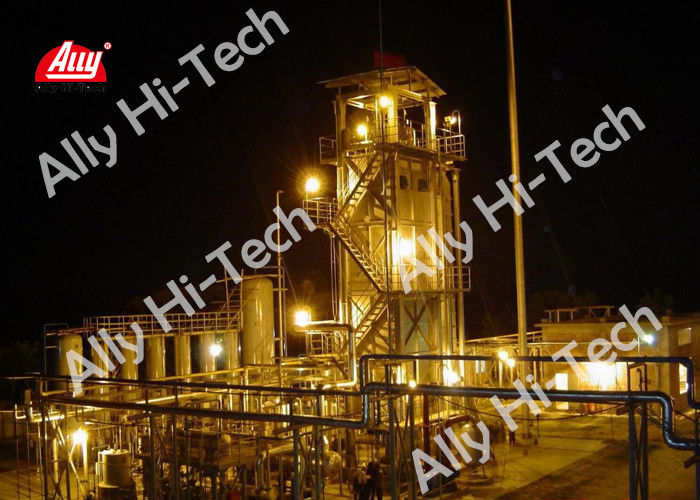

Ally Hi-Tech optimized the process of SMR, including the reformer, heat exchange network (HEN) and purification system, to reduce both capital investment and natural gas consumption, on the basis of the gas preparation system of the ammonia synthesis process. Typically, Ally Hi-Tech has been engaged in the optimization of the reformer and granted more than 6 patents in this field. Ally Hi-Tech provided the hydrogen solution with a capacity of 50 NCMH for the Beijing Olympics based on the SMR process associated with PSA in 2008.

Features

• Mature production technology, safe and reliable operation.

• Safe and practical operation control with a high degree of automation.

• Low operating costs and short payback period.

• Off-gas of PSA recovered as a fuel reduces both fuel consumption and exhaust emissions.

Process Schematic

Process Description

Desulphurization gas is mixed with steam as per a certain ratio. The mixture flows through the Reformer Tubes, where it converts into a syngas consisting of hydrogen and carbon monoxide and carbon dioxide and unreacted methane and steam in the presence of a catalyst. A heat exchange system is used as an economizer, while a shift converter is introduced to convert carbon monoxide into extra hydrogen and carbon dioxide. The resulting gas enters into a PSA unit, where the hydrogen is separated from the other gases. The off-gas of PSA is recovered as fuel.

Reaction

CH₄+H₂O →3H²+CO - Q

CO+H₂O  → H²+CO₂+Q

Performance

• Hydrogen Capacity: 200 ~ 50,000 Nm³/h

• Hydrogen Purity: 99% ~ 99.999% (v/v)

• Hydrogen Pressure: 1.3 ~ 3.0 MPa(G)

• Temperature: ambient
