Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H

Basic Information
Place of Origin: China
Brand Name: Ally Hi-Tech
Price: Negotiable
Packaging Details: Seaworthy Package
Delivery Time: 8 ~ 12 months
Detail Information
Application: On-site Hydrogen Generation Performance: High Reliabilityy
Footprint: Modularization Technology: Mature And Advanced
Automation: High Degree Efficiency: High
Module: Pre-fabricated Skid
High Light:

hydrogen gas system

,

steam methane reforming process for hydrogen production


Product Description

** Medium-scale On-site Hydrogen Generation by SMR 600 Nm3/h ~ 3,000 Nm3/h


General

Ally Hi-Tech optimized the process of SMR, including the reformer, heat exchange network (HEN) and purification system, to reduce both capital investment and natural gas consumption, on the basis of the gas preparation system of the ammonia synthesis process.

Typically, Ally Hi-Tech has been engaged in the optimization of the reformer and granted more than 6 patents in this field. Ally Hi-Tech provided the hydrogen solution with a capacity of 50 NCMH for the Beijing Olympics based on the SMR process associated with PSA in 2008.



Features

  • Mature production technology, safe and reliable operation.
  • Safe and practical operation control with a high degree of automation.
  • Low operating costs and short payback period.
  • Off-gas of PSA recovered as fuel reduces both fuel consumption and exhaust emissions.
  • Pre-fabrication skid
  • Pre-fabricated top-fired cylinder reformer saving huge on-site installation work



Process Schematic

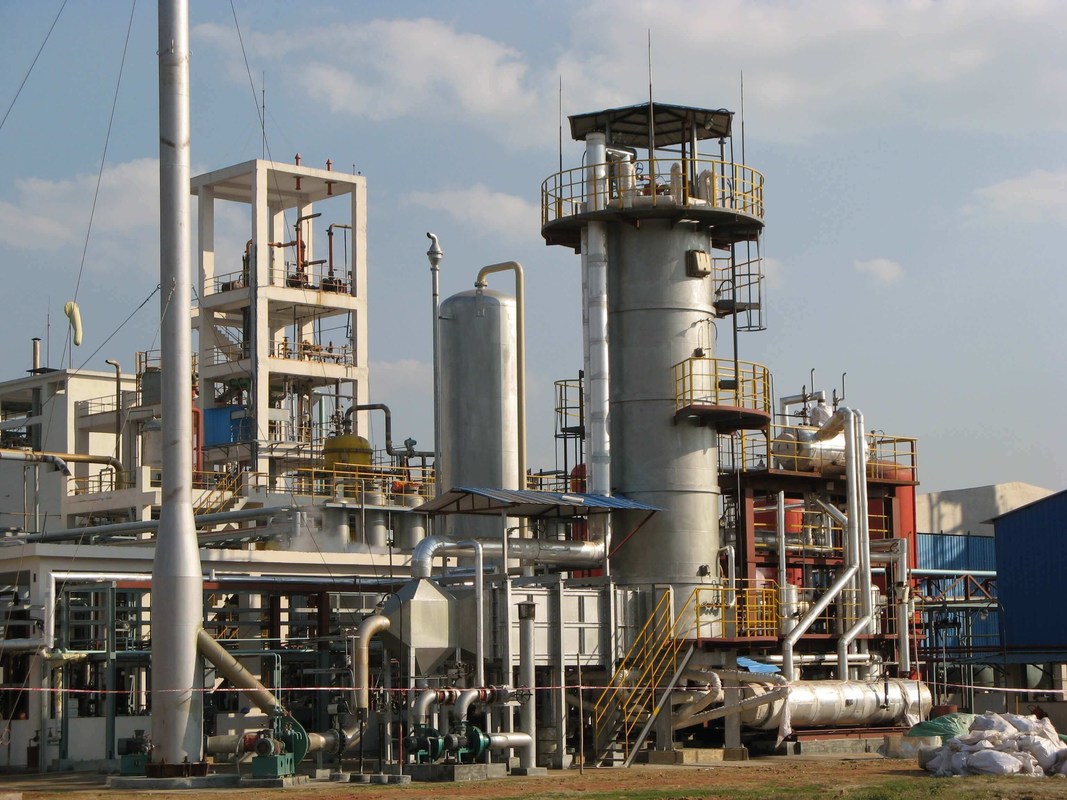

Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H 0





Process Description

Desulphurization gas is mixed with steam as per a certain ratio. The mixutre flows through the Reformer Tubes, where it converts into the syngas consisting of hydrogen and carbon monoxide and carbon dioxide and unreacted methane and steam in the presence of catalysts.



A heat exchange system is used as an economizer, while a shift converter is introduced to convert carbon monoixed into extra hydrogen and carbon dioxide. The resulting gas enters into a PSA unit, where the hydrogen is separated from the other gases. The off-gas of PSA is recovered as fuel.



Reaction Formula

  1. CH4+H2O →3H2+CO - Q
  2. CO+H2O  → H2+CO2+Q



Performance

  • Hydrogen Capacity: 600 ~ 3,000 Nm3/h

  • Hydrogen Purity: 99% ~ 99.999% (v/v)

  • Hydrogen Pressure: 1.3 ~ 3.0 MPa(G)

  • Temperature: ambient
