Operation: | Long Time | Feedstock: | Methanol |
---|---|---|---|
Weight: | Light | Noise: | ≤60 |
High Light: | ups unit power supply,uninterrupted power supply unit |
Hydrogen Uninterruptible Power System Long Operation Time Long Lifetime
Methanol to hydrogen + fuel cell - continuous power supply system is based on methanol solution as raw material. The high purity hydrogen is obtained by reforming and PSA method, then heat and power outputs are obtained by fuel cell.
• Base station
• Machine room
• Data Center
• Outdoor Monitoring
• Island
• Hospital
• Other occasions...
Classic Case
Telecommunication base stations and a refuge in the mountainous area of Taiwan: 20Nm3/h methanol hydrogen generator and 5Kw×4 matched fuel cells. Methanol-water storage: 2000L, it can reserve for 74hr continuous use time with output of 25Kw, and supply emergency power for 4 mobile communication base stations and one refuge.

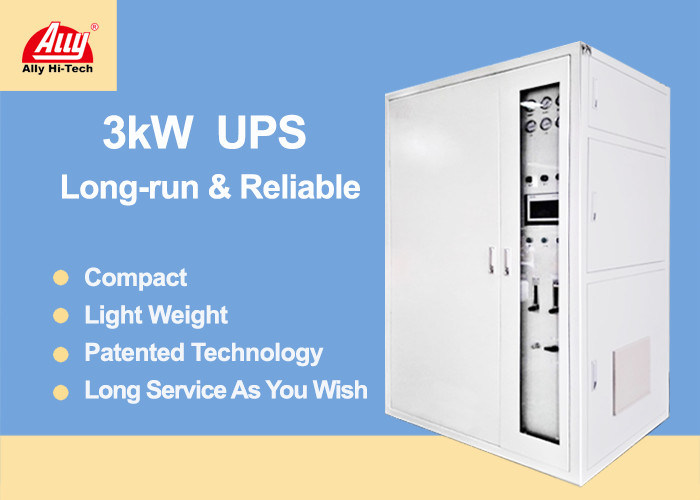

3kW continuous power supply system configuration, L×H×W(M3):0.8×0.8×1.7(can guarantee 24 hours continuous power supply, if longer power supply is required, it needs external fuel tank)
