| Place of Origin: | China |
|---|---|
| Brand Name: | Ally Hi-Tech |
| Model Number: | UPS |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Package |
| Operation: | Long Time | Output Power: | 3kW |
|---|---|---|---|
| Temperature: | -5～45℃ | Type: | Hydrogen UPS |
| Material: | Methanol | ||
| High Light: | ups unit power supply,uninterrupted power system |
||

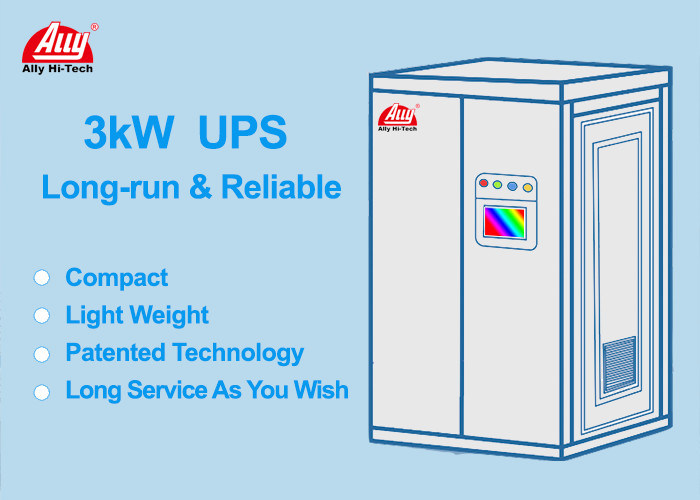

Methanol Reforming Hydrogen 3kW Backup Power System Long Run UPS
Different from other kinds of UPS, Ally Hi-Tech combined hydrogen production by methanol-reforming and fuel cell system together. The biggest advantage of hydrogen UPS is its long operation time. Because it is hydrogen energy UPS, pollution and carbon emission is very low. Besides, the noise is lower than 60dB.
Performance
| No. | Item | Value |
| 1 | Rated Voltage | 48VDC |
| 2 | Rated Power | 3kW/5kW |
| 3 | Methanol Consumption | ~0.5kg/kW |
| 4 | Operation Temperature | Ambient |
| 5 | Stack Design Life | min.5000h (Continuous) |
| 6 | Noise | max.60dB |
| 7 | Protection Class | IP54 |
| 8 | Outline Dimension | 0.8m x 0.8m x 1.7m |
