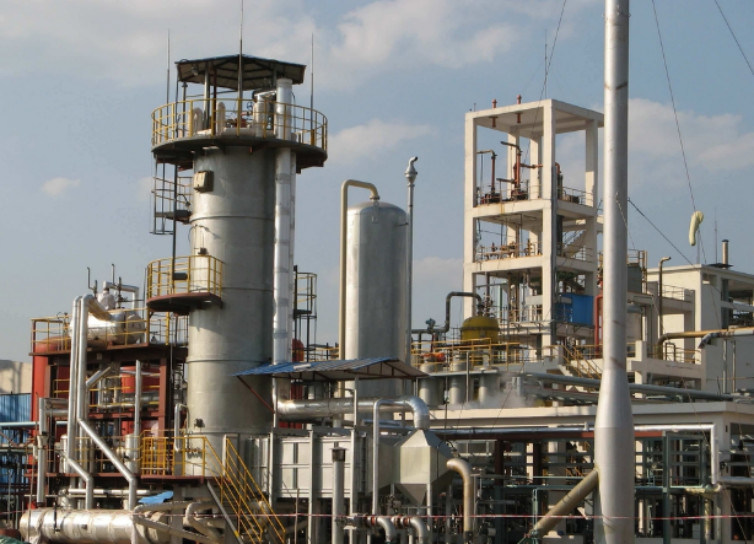

Hydrogen Energy Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H

Basic Information
Place of Origin: China
Brand Name: Ally Hi-Tech
Price: Negotiable
Packaging Details: Seaworthy Package
Delivery Time: 8 ~ 12 months
Detail Information
Application: On-site Hydrogen Generation Performance: High Reliabilityy
Footprint: Modularization Technology: Mature And Advanced
Automation: High Degree Efficiency: High
Module: Pre-fabricated Skid
High Light:

Industrial Hydrogen Generator SMR


Industrial Hydrogen Generator 600 Nm3/H


3000 Nm3/H hydrogen energy generator

Product Description

** Medium-scale On-site Hydrogen Generation by SMR 600 Nm3/h ~ 3,000 Nm3/h


Based on the gas preparation system for the ammonia synthesis process, Ally High-Tech has optimized the SMR process, including the reformer, heat exchange network (HEN) and purification system, to reduce capital investment and natural gas consumption.
Generally, Ally High-Tech has been working on reformer optimization and has obtained more than 6 patents in this field. Ally High-Tech provided a hydrogen solution with a capacity of 50 NCMH for the Beijing Olympic Games based on the 2008 PSA-related SMR process.



  • The production technology is mature and the operation is safe and reliable.
  • It has highly automated safe and practical operation control.
  • Low operating costs and short payback period.
  • PSA exhaust gas is recovered as fuel, reducing fuel consumption and exhaust emissions.
  • prefabricated skid
  • Prefabricated top-fired cylindrical reformer saves a lot of on-site installation work​


Process Schematic

Hydrogen Energy Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H 0



Process Description

Desulfurized gas is mixed with steam in a certain proportion. The mixture flows through reformer tubes where it is converted in the presence of a catalyst into a synthesis gas consisting of hydrogen, carbon monoxide, carbon dioxide, unreacted methane and steam.

A heat exchange system is used as an economizer, while an inverter is introduced to convert monomixed carbon into additional hydrogen and carbon dioxide. The resulting gas goes to a PSA unit where the hydrogen is separated from other gases. The PSA off-gas is recovered as fuel.


Reaction Formula

  1. CH4+H2O →3H2+CO - Q
  2. CO+H2O  → H2+CO2+Q



Hydrogen Capacity 600 ~ 3,000 Nm3/h
Hydrogen Purity 99% ~ 99.999% (v/v)
Hydrogen Pressure 1.3 ~ 3.0 MPa(G)
Temperature ambient
