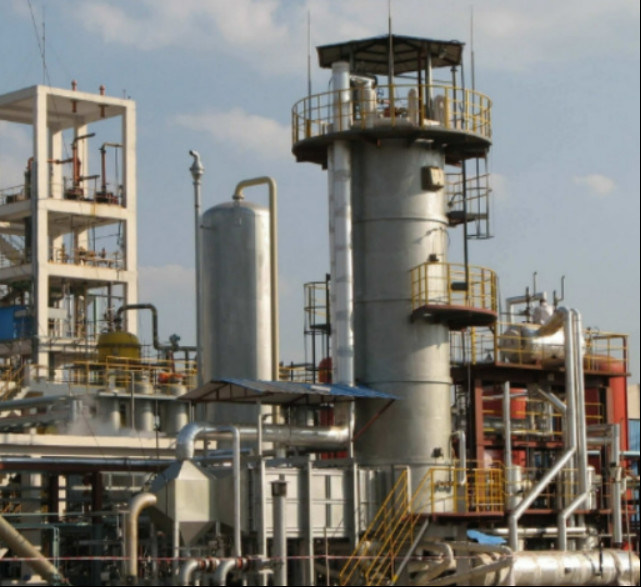

Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H

Basic Information
Place of Origin: China
Brand Name: Ally Hi-Tech
Price: Negotiable
Packaging Details: Seaworthy Package
Delivery Time: 8 ~ 12 months
Detail Information
Features: High Efficiency Application: On-site Hydrogen Generation
Performance: High Reliabilityy Footprint: Modularization
Technology: Mature And Advanced Automation: High Degree
Module: Pre-fabricated Skid
High Light:

SMR Industrial Hydrogen Generator


Medium Scale Industrial Hydrogen Generator


600 Nm3/H Hydrogen Generator

Product Description

Hydrogen Energy Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H


Ally High Tech has optimized the SMR process based on the gas preparation system of the ammonia synthesis process, including reformer, heat exchange network (HEN) and purification system to reduce capital investment and natural gas consumption.

Generally, Ally High-Tech has been working on reformer optimization and has obtained more than 6 patents in this field. Ally High-Tech provided a hydrogen solution with a capacity of 50 NCMH for the Beijing Olympic Games based on the 2008 PSA-related SMR process.


  • The production technology is mature, and the operation is safe and reliable.
  • It features highly automated safety and practical operational controls.
  • Low operating costs and short payback periods.
  • PSA exhaust gas is recycled as fuel, thereby reducing fuel consumption and exhaust emissions.
  • prefabricated skid
  • Prefabricated top-fired cylindrical reformer saves a lot of on-site installation work​


Hydrogen Capacity 600 ~ 3,000 Nm3/h
Hydrogen Purity 99% ~ 99.999% (v/v)
Hydrogen Pressure 1.3 ~ 3.0 MPa(G)
Temperature ambient

Process Description

The desulfurized gas and steam are mixed in a certain ratio. The mixture flows through reformer tubes where it is converted in the presence of a catalyst to a synthesis gas consisting of hydrogen, carbon monoxide, carbon dioxide, unreacted methane and steam.
A heat exchange system is used as an economizer, while an inverter is introduced to convert the monomixed carbon into additional hydrogen and carbon dioxide. The resulting gas goes to a PSA unit where the hydrogen is separated from other gases. PSA off-gas is recovered as fuel.

Process Schematic

Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H 0

Reaction Formula

  1. CH4+H2O →3H2+CO - Q
  2. CO+H2O  → H2+CO2+Q


Ally Hi-Tech Co.,Ltd.
Ally Hi-Tech was established on September 18, 2000, a national high-tech enterprise registered in Chengdu High-tech Zone. In the past 22 years, Ally has been adhering to the R & D leading direction of new energy solutions and advanced hydrogen production technology, and paid attention to the industrial application and market promotion of the technology, which made Ally one of the top level enterprises in hydrogen energy industry.

In the field of hydrogen energy, Ally has established a professional position as a Chinese hydrogen production expert. It has built more than 630 sets of hydrogen production and purification projects, has undertaken many national top projects. Ally has participated in 6 national 863 projects, and owned 57 patents of the United States, European Union and China. Ally is a professional hydrogen generation supplier for many Fortune 500 companies, a typical technology-oriented and export-oriented enterprise.

Ally Hi-Tech has established long-term cooperation with users at home and abroad with its excellent quality and service, and it is a qualified supplier of a world-class company. Including Sinopec, PetroChina, Hualu Hengsheng, Tianye Group, Zhongtai Chemical, American Prager Energy, Air Liquide, Linde, Praxair, Iwatani Gas, Taiyo Nippon Sanso Company, British Petroleum (BP) and other companies.

At the same time, Ally is committed to the construction of hydrogen energy standards, drafting a national standard, participating in the drafting of 7 national standards and one international standard. Among the national standards, "GB/T 34540-2017 Technical Specifications for Methanol Conversion Pressure Swing Adsorption Hydrogen Production" that drafted and compiled by Ally Hi-Tech was released. In May 2010, Ally participated in the publication of the national standard "GB 50516-2010, Technical Specifications for Hydrogen filling Stations".

In December 2018, Ally participated in the release of the national standard GB/T 37244-2018, "Fuel Hydrogen for Proton Exchange Memabrane Fuel Cell Vehicles". Its release determines the technical standards for hydrogen using and hydrogen refueling of hydrogen fuel cell vehicles.

Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H 1Medium Scale Industrial Hydrogen Generator By SMR 600 Nm3/H - 3000 Nm3/H 2
