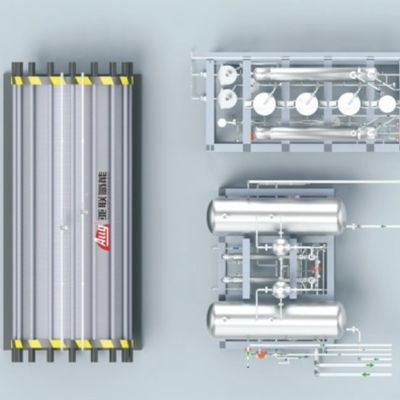

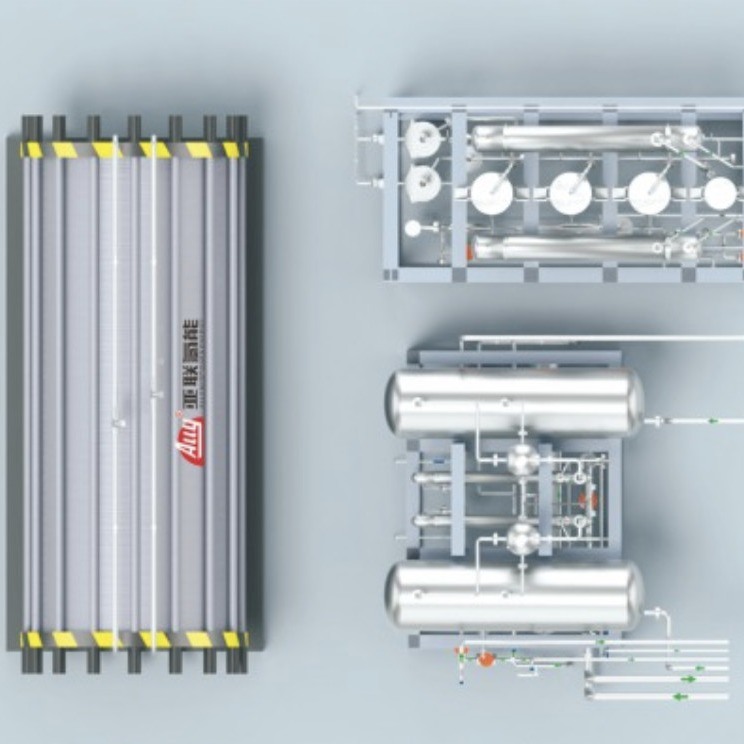

1000NM3/H Hydrogen Generator Electrolysis Up To 99.999% Output Purity

Basic Information
Place of Origin: China
Brand Name: Ally
Certification: MCC, CE
Model Number: ALKEL
Minimum Order Quantity: 1
Packaging Details: Seaworthy Packing
Delivery Time: 6 months
Supply Ability: 200MW per year
Detail Information
Output Pressure: ≤3.0MPa Output Dew Point: -60℃
MOC: Stainless Steel Ambient Temperature: 5-40℃
Electrolysis Efficiency: ≥80% DC Power Consumption: ≤4.5KW
High Light:

1000NM3/H Hydrogen Generator


99.999% Electrolysis Hydrogen Generator


Industrial Water Electrolysis Hydrogen Generator

Product Description

Product Description:

The Water Electrolysis Hydrogen Generator is an alkaline electrolyzer for hydrogen generation designed for hydrogen production by electrolysis of water. It is capable of producing hydrogen with an output pressure of up to 3.0MPa, a DC power consumption of  than 4.5KW, and a noise level of less than 60dB. It is perfect for hydrogen production by electrolysis with a reliable, efficient, and cost-effective process, making it the ideal choice for industrial and commercial hydrogen production.

The Water Electrolysis Hydrogen Generator is designed to provide a safe, secure, and reliable hydrogen production solution that is both energy-efficient and cost-effective. It uses advanced electrolysis technology to achieve a high output pressure, low electrolysis current, and a low DC power consumption, with a noise level of less than 60dB. The generator is also designed with safety in mind and is certified to meet the highest standards of quality and performance.

The Water Electrolysis System is the perfect solution for hydrogen production by electrolysis of water. It is easy to install, maintain, and operate, and is the ideal choice for businesses looking to produce hydrogen in an efficient and cost-effective manner. Whether you are looking for a reliable source of hydrogen for industrial or commercial use, the Water Electrolysis Hydrogen Generator is the perfect choice.



The new sealing gasket offers superb performance, thanks to its use of premium polymer material. It allows for excellent sealing of the electrolytic cell and could reduce energy consumption.

In addition to that, it is asbestos-free diaphragm cloth, and comes with no carcinogens. You will not need to clean the filter every once in a while either, adding to its green credentials.

It also has an interlocking alarm function gate, along with a PLC control with fault self-recovery feature, which allows for unparalleled, uninterrupted operation. Furthermore, its small size makes it ideal for small areas with limited space.

This equipment can run steadily for an entire year without having to be stopped and restarted, and its automation level is very high. What's more, it can adjust the load and offers a long service life and reliable performance.


Technical Parameters:

The device has a wide range of operation scales, from 50Nm³/h to 1500Nm³/h. It is capable of achieving a purity from 99.5% to 99.999% (v/v), and a safe maximum working pressure up to 3.0MPa(G).



Ally ALKEL Water Electrolysis Hydrogen Generator is designed for alkaline electrolysis of water to generate hydrogen, using the brand's unique and advanced technology.  This generator is certified by MCC and CE, with minimum order quantity of 1 and delivery time of 6 months. It is constructed with stainless steel for durability. With a supply ability of 200MW per year, the Ally ALKEL Water Electrolysis Hydrogen Generator is perfect for those in need of a reliable and efficient source of hydrogen.


Support and Services:

Water Electrolysis Hydrogen Generator Technical Support and Service

We provide technical support and services for our Water Electrolysis Hydrogen Generator. These services include:

  • Troubleshooting and repair
  • Cleaning and maintenance
  • System optimization
  • Product upgrades
  • Technical support hotline

Our technicians are experienced and certified in all aspects of Hydrogen Generator maintenance and repair, and are available to help you with any issue you may have.
